Place of Origin:
Foshan,Guangdong
Brand Name:
TPA Housing
Certification:
ISO,SGS,BV
Model Number:
TPA-SD032
Product Description
Product type: steel warehouse buildings
construction procedures are as follow:
* Construction of steel frame structure foundation
* Steel column construction
* Erection of steel beams
* Floor systems used in the steel frame structure construction
Steel workshop buildings materials component :
| Main Steel Frame | H section steel | Q345 steel 8mm/10mm |
| Welding | Automatic submerged arc welding | |
| Rust removal | Sand blasting | |
| Surface processing | Alkyd paint or galvanized | |
| Intensive bolt | Grade 10.9 | |
| Supporting System | Angle brace | L50x4,Steel Q235, processed and painted |
| Cross support | Φ20, Steel Q235, processed and painted | |
| Belt bar | Φ89*3, Steel Q235, processed and painted | |
| Small brace | Φ12,Steel Q235, processed and painted | |
| Ordinary bolt | Galvanized bolt | |
| Roof | Purlin | C160*60*2.5,Steel Q235, galvanized and painted |
| Outer-roof panel | Sandwich panel or corrugated steel plate | |
| Sky light | 6mm thick PVC | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | Made from 0.5mm thick, colored sheet steel | |
| Gutter | Made from 0.8mm thick sheet steel | |
| Rainspout | Φ110PVC | |
| Walls | Purlin | C160*60*2.5,Steel Q235, painted |
| Wall | sandwich panel or corrugated steel plate | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | Made from 0.5mm thick, colored sheet steel | |
| Ventilation equipment | Ventilation ball | |
| Doors & windows | Rolling door/sliding door PVC/alu/steel window |

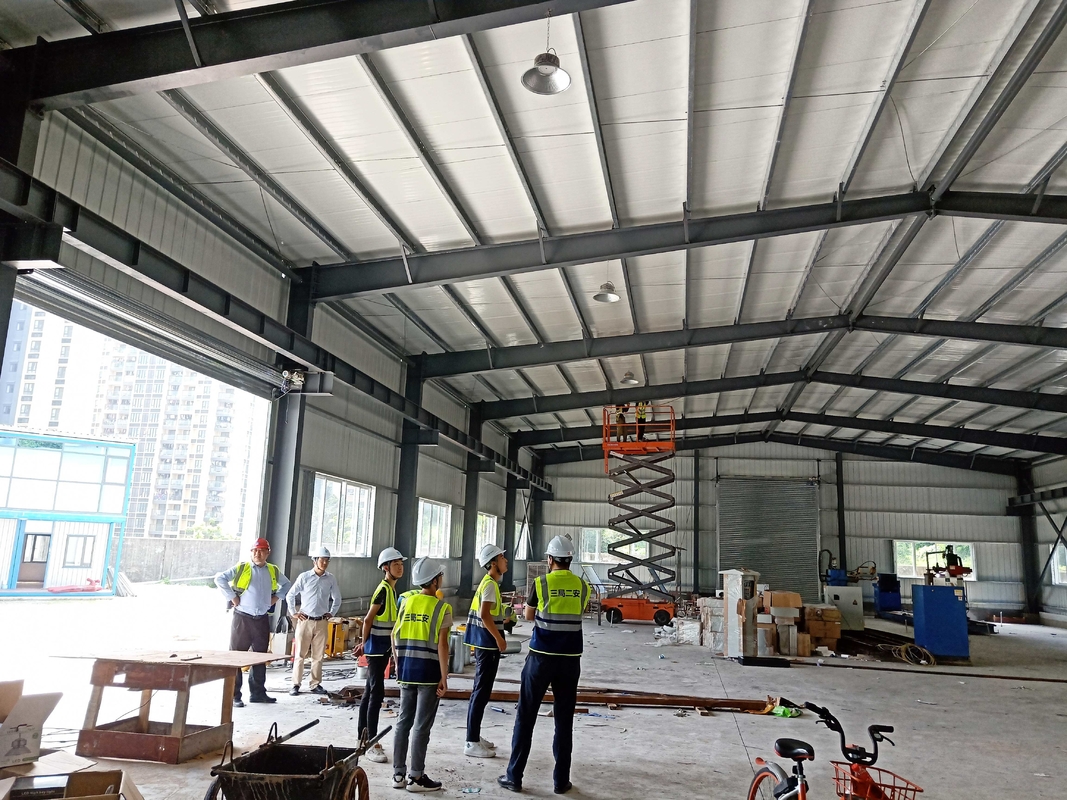

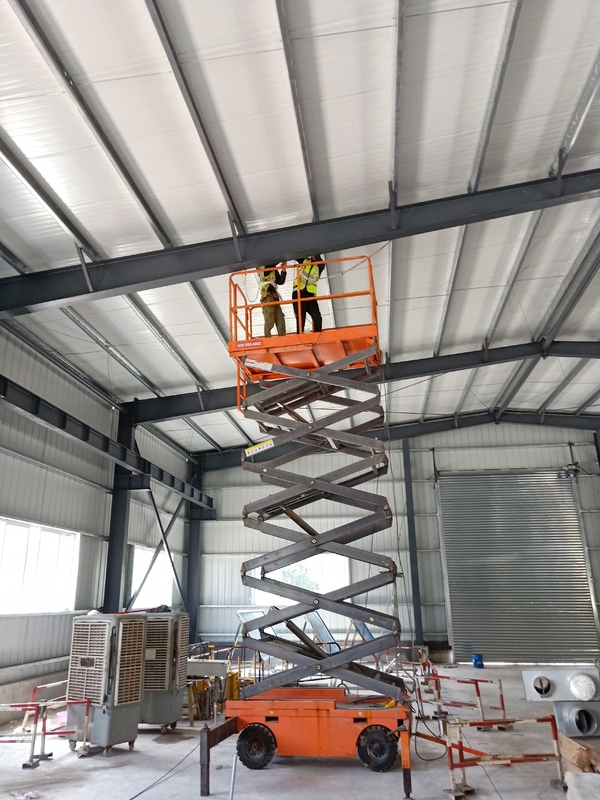

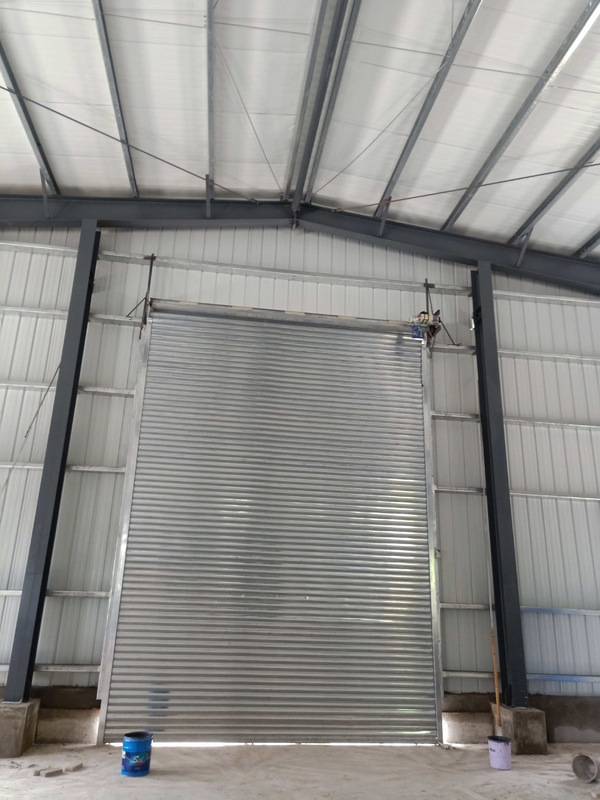

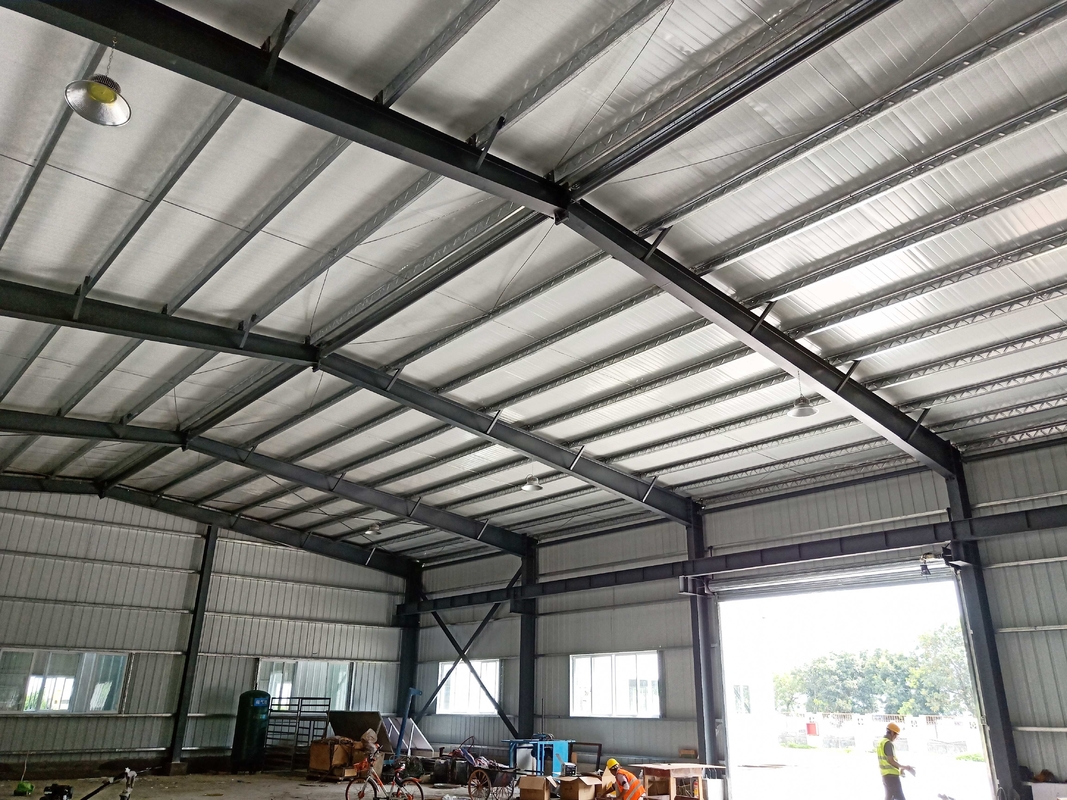

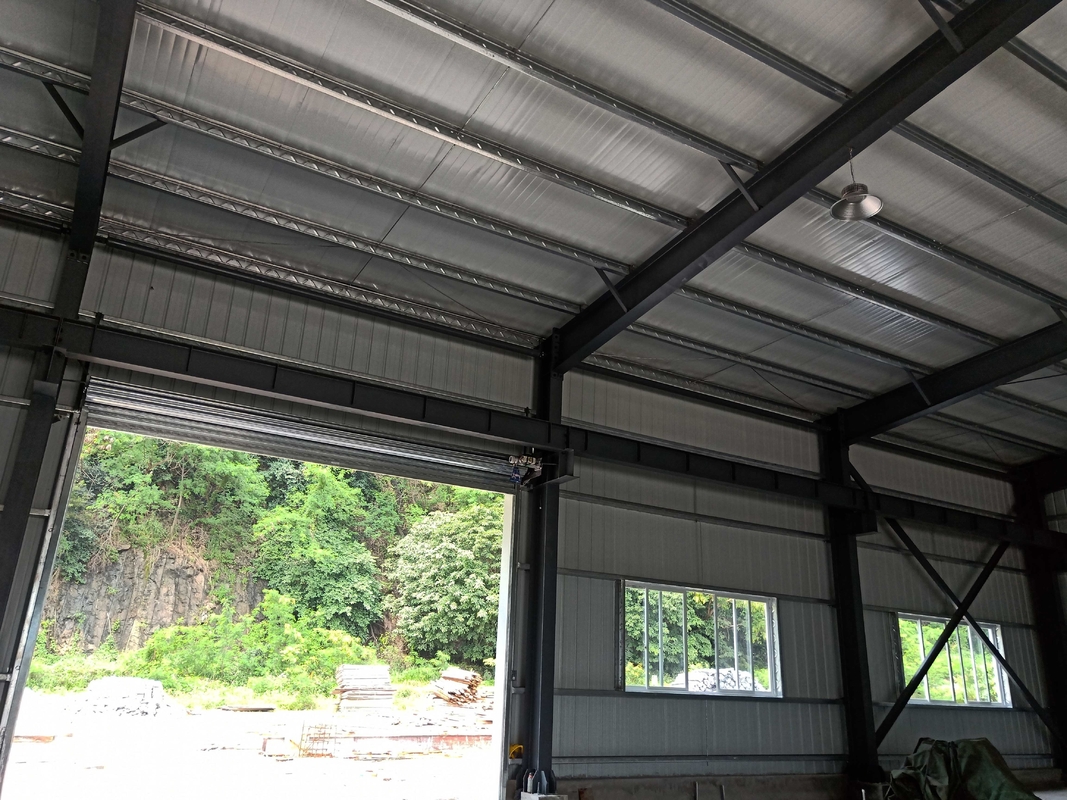

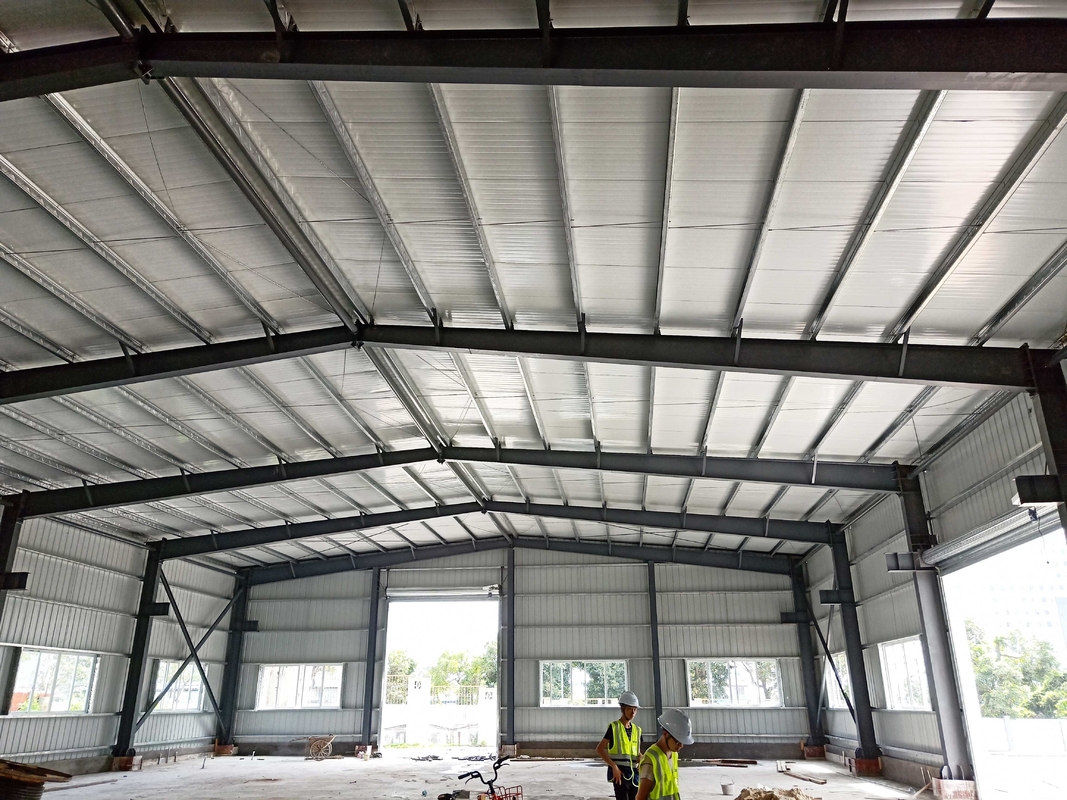

Steel metal frame building for workshop or warehouse deliver complete security
1) Provides the strength, durability, flexibility and customization made
2) Reduces chance of fire
3) Can withstand severe weather conditions, rot and similar wear
4) Saves you money in reduced maintenance costs and possibly insurance premiums
5) Provides a large, clear span for the storage of a variety of large and small items
6) Can accommodate overhead cranes for movement of large items and tall objects
7) Is highly cost-efficient compared to traditional construction
8) Adds wide-eave canopies to cover dock areas, when needed
Price
We can quote if you can offer the following information:
1) Length (side wall, m)?
2) Width (end wall, m)?
3) Wall Height (eave, m)?
4) Middle Column allowed or not?
5) Project location?
6) Snow load?
7) Wind load?
8) Seismic magnitude?
9) Mezzanine or not? And usage?
Steel structure fabrication processing
Our services
1. Project Services
Simple or complex,our specical project services team quickly an expertly handle your project.
2. Private manufacturing services(OEM)
We can manufacture and deliver high quality metal building system under your brand name.
Private Label Services.
3.Private Label Services
Promote your company name and brand as a top resource for cost-effective, quality metal buildings.
Steel structure container loading
About us
Foshan TianPuAn Building Materials Technology Co.,Ltd.(TPA housing),was is founded in 2008. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop(Lishui town/Gaoming town)with total area covered 20,000square meter plant and equipped an automatic spraying line and automatic welding machine.
