Place of Origin:
Foshan,Guangdong
Brand Name:
TPA Housing
Certification:
ISO,SGS,BV
Model Number:
TPA-ST124

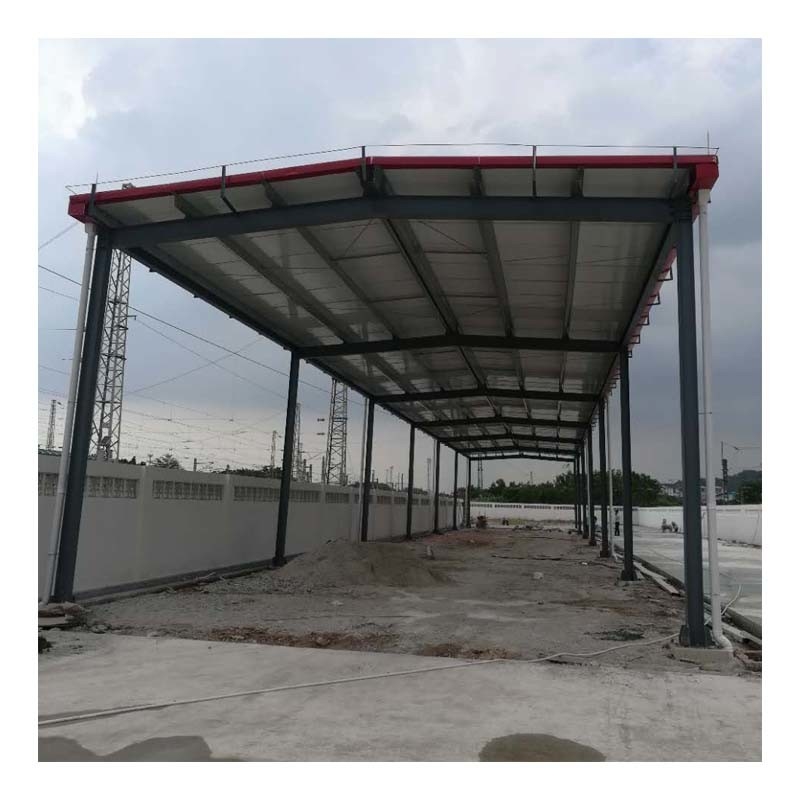

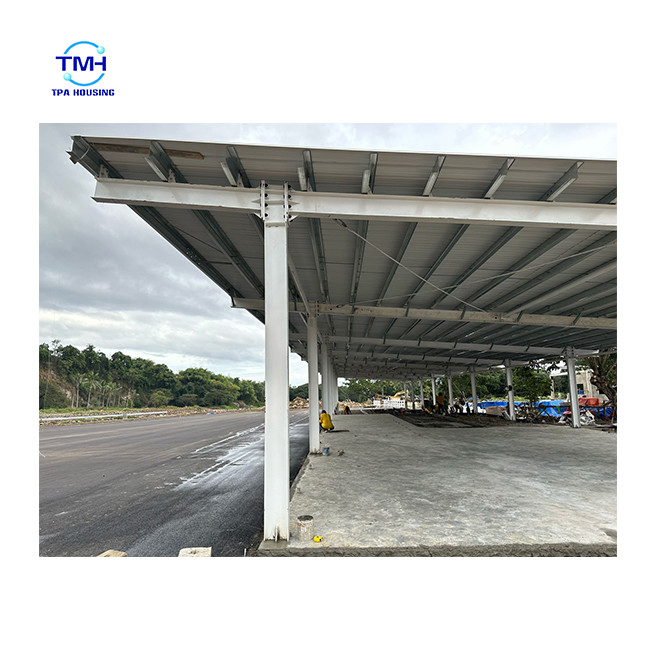

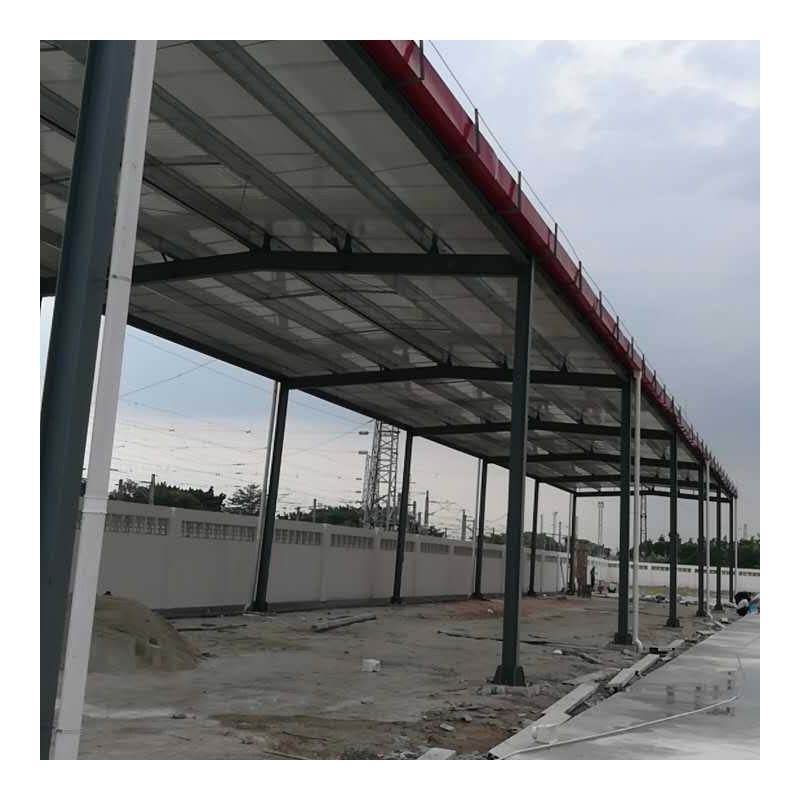

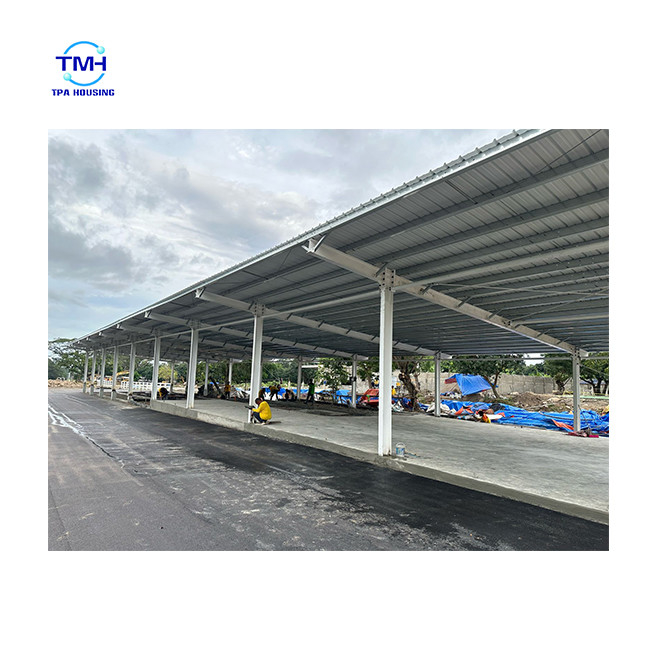

Large Span Philippines Industrial Steel Shed Pre Engineered Structure
Product Description
Product type: steel farm sheds
Steel is the greenest way to build. Steel is the most recycled material in the world. Our agricultural steel buildings provide better protection from high winds, lightning, fire, mold, earthquakes, termites, and aging than any other building system. We have many versions of farm sheds or barns available including open-sided machinery sheds, hay barns, riding arenas and dairy sheds. Your farm shed is also fully customizable. You can have open bays, closed bays, or divider walls. Roller doors or steel sliding doors can also be added wherever you wish.
TPA HOUSING steel warehouse is a light steel structure product, the main structure is cold-formed thin-wall steel component by bolt connection, one unit can achieve 30 meters in span, and it could be also combined with another unit by span each other, to achieve more than span space. Comparing with the traditional steel structure, it has the advantage of lightweight, a large span, fewer materials, low costs, saves foundations, a short construction period, safety, reliability, and attractive appearance. It is ideal for buildings both large and small.
Related Building Types: Commercial, Industrial, Manufacturing, Medical, Mini Storage, Storage Buildings
Recommended Use
- Agricultural area
- Barn/ granary
- Farm Building
- Hay Storage
- Horse Stables
- Outbuildings
Steel farm shed materials component :
A) Embedded parts
| 1 | Anchor bolt | M16/ 24/ 30 |
| 2 | Common bolt | M12/ 16/ 20 |
| 3 | Galvanized bolt | M12/ 16/ 20 |
| 4 | Turnbuckle | M12/ 16/ 20 |
B) Main steel frame
| 1 | Steel column(Q235B) | 150*100*4.0 |
| 2 | Roof truss(galvanized) | C100*50*20*2.0 |
| 3 | Tie rod | 89*2.5 |
| 4 | Horizontal bracing | 16 steel bar |
| 5 | Column bracing | 16 steel bar |
| 6 | Roof purlin(galvanized) | C140*50*20*2.3 |
| 7 | Ceiling purlin(galvanized) | C100*50*20*2.0 |
| 8 | Wall purlin(galvanized) | C140*50*20*2.3 |
| 9 | Connecting plate | 3~5mm steel sheet |
| 10 | Steel fabrication | Sanding, paint |
C) Maintenance
| 1 | Roof tile steel sheet roofing | Color steel thickness: 0.5mm |
| 2 | Roof insulation layer | Glass wool roll 100mm,12kg/m³ |
| 3 | Roof tile bottom steel sheet | Color steel thickness: 0.4mm |
| 4 | Wall panel | 50mm EPS Sandwich panel |
| 5 | Door | Sandwich panel sliding door |
| 6 | Trimming | 0.5mm Steel sheet |
Metal building construction drawing display
Steel farm sheds advantage
1) Strength and Durability
2) Require less maintenance than traditional buildings
3) Fast assemble, eco-friendly
4) Affordable price
5) Long service life span
Process performance of steel
The processing of steel into the required structural components requires a series of processes, including various machining (milling, planning, hole making), cutting, cold, heat correction and welding.
Container loading directly in our factory
Steel Buildings for Sale at the Best Prices, just choosing the Right Building for You~
We'd love to give full support for your further inquiry!
