Place of Origin:
Guangdong Foshan Lishui, China
Brand Name:
TPA Housing
Certification:
ISO, SGS,BV
Model Number:
TPA-SD036
Steel Structure Building Description

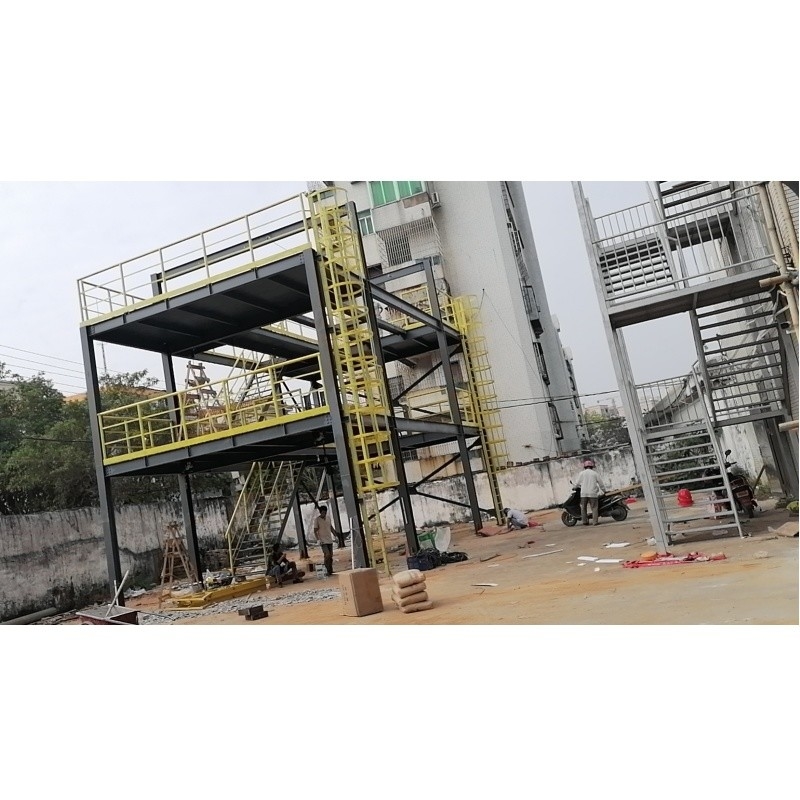

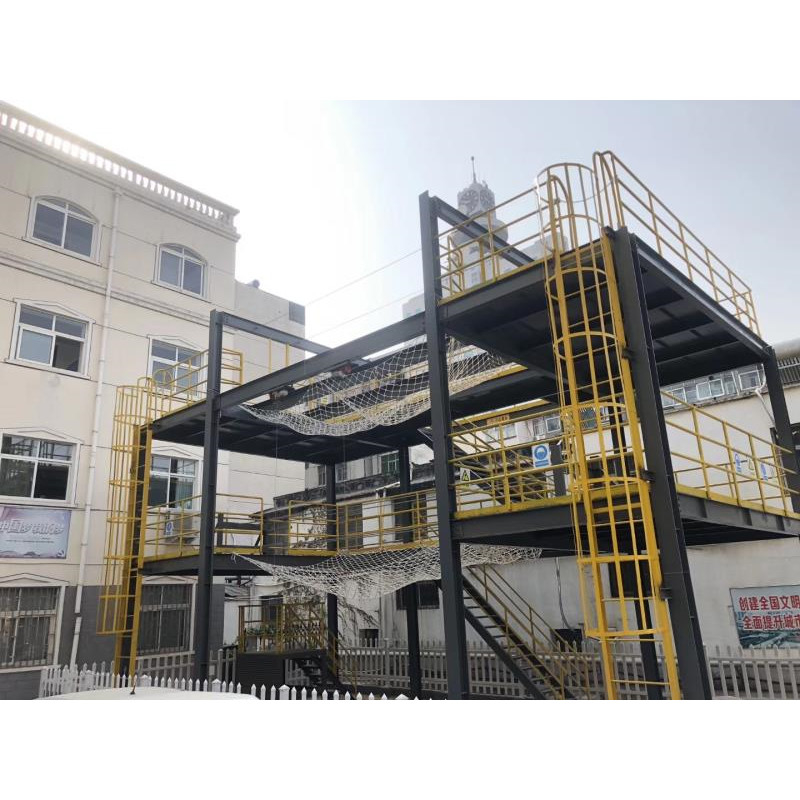

A steel structure platform is a robust and versatile construction system typically utilized in industrial, commercial, and even residential settings for various purposes such as machinery support, material handling, storage, work stations, or as an observation deck. It comprises a framework of steel beams, columns, and cross-bracing, supported by a foundation, upon which a decking material (e.g., steel grating, expanded metal, or reinforced concrete) is installed to create a stable, flat surface.

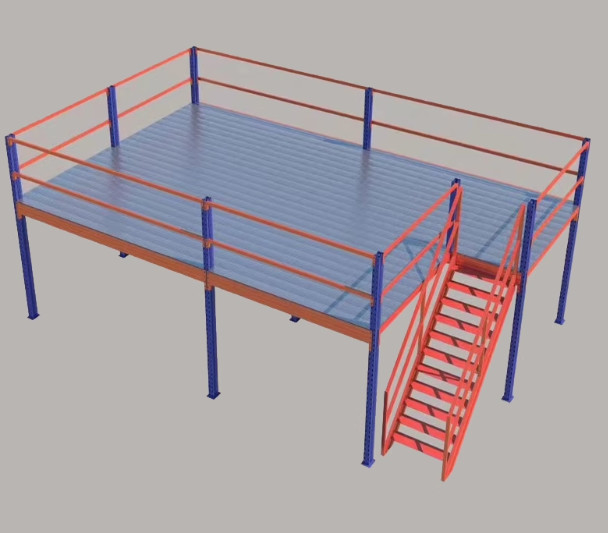

Steel Structure Platform Description:
A steel structure platform is an engineered solution designed for strength, durability, and adaptability. It begins with a meticulous planning phase where the platform's specific requirements, including load capacity, dimensions, and intended use, are carefully considered.
Key Components:

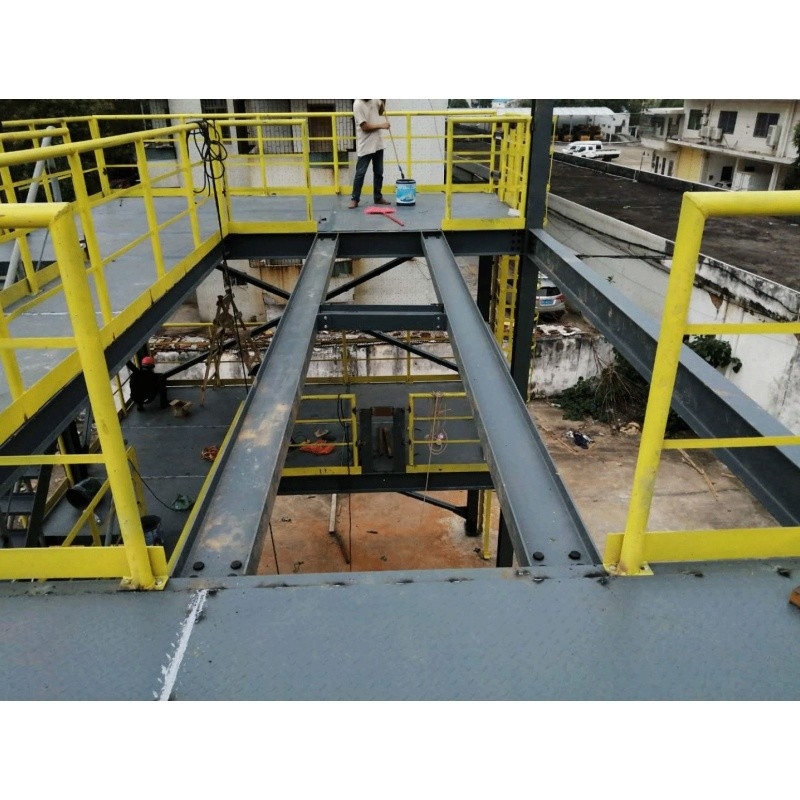

Steel Beams and Columns: The backbone of the platform, these structural elements are responsible for supporting and distributing the load evenly across the structure. Made from high-strength steel alloys, they ensure stability and resistance to deformation, even under heavy loads.
Cross-Bracing: Strategically placed horizontal and diagonal braces reinforce the platform's rigidity, preventing lateral movement and improving overall structural integrity.
Decking Material: The top surface of the platform, usually made from steel grating, expanded metal, or a combination of steel and concrete, provides a secure and slip-resistant working area. These materials allow for easy drainage, ventilation, and access to underlying systems or piping.
Foundation: The foundation, which can be a concrete slab, piles, or a combination, anchors the platform to the ground, ensuring stability and resistance to shifting soils.

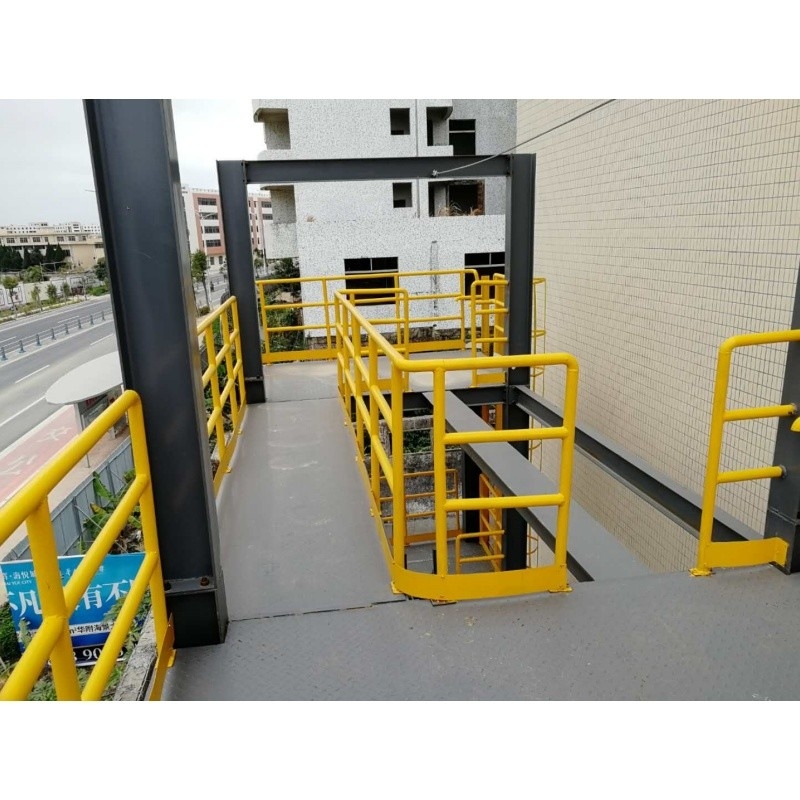

Access Systems: Depending on the platform's height and accessibility needs, stairs, ladders, catwalks, or elevators may be incorporated into the design for safe and efficient access.
Safety Features: Railings, toe boards, and other safety barriers are essential components to prevent falls and ensure OSHA compliance. Additionally, lighting, fire extinguishers, and emergency exits are often integrated for worker safety.
1. What is steel structure?
Steel structure is a metal structure which is made of structural steel* components connect with each other to carry loads and provide full rigidity. Because of the high strength grade of steel, this structure is reliable and requires less raw materials than other types of structure like concrete structure and timber structure.
In modern construction, steel structure is used for almost every type of structure including heavy industrial buildings, multi-storey buildings, equipment support systems, infrastructure, bridges, towers, airport terminals, etc.
2. Why choose steel parking structures?
*Long Spans
Space availability for parking structures is often restricted, confined, and misshaped, but the design opportunity in steel is to optimize space usage through long open spans. Although long spans - typically 55 to 65 feet - may increase weight, the cost (due to fabrication and erection efficiencies) can be reduced by as much as 10 percent over conventional methods. Advantages of long spans include:
*Adaptability
Restrictions of space and accessibility of irregularly shaped or small sites, as well as limited foundation depths, can be addressed by incorporating lightweight steel frames in parking structures.
*Ease of Maintenance
Today’s modern protective coatings and/or high-performance paint systems protect steel-framed parking structures for 30 to 50 years, with merely minimal touch-ups. The open and readily accessible steel frame - a “standard” - simplifies surface inspection and maintenance.
3. Basic Design Requirements: design Load: (very important)
1. Snow load:
2. Wind load:
3. Seismic magnitude:
4. Middle Column allowed or not:
5. Project location:
6. Length (side wall, m):
7. Width (end wall, m):
8. Wall Height (eave, m):
9. Mezzanine or not? And usage:
4. A steel structure building can also be used for:
1) Industrial Buildings
2) Manufacturing Facilities
3) Warehouses
4) Construction Equipment Storage
5) Machinery Storage
6) Tool Storage
7) Warehouse Expansion
8) & More, tell us about your needs here!
5. Drawings & Quotation:
1) Customized design is welcomed.
2) As long as you like, we can design and provide drawings for you.
3) In order to give you an exactly quotation and drawings, please let us know length, width, eave height and local weather. We will quote for you promptly.
6. Material list component
| Embedded parts | M30 |
| High strength bolt | M20, 10.9s M16,8.8S |
| Main beam(Q345B) | HN800X300X14X22 |
| Secondary beam(Q235B) | HN200X100X4.5X7, [8 steel channel |
| Connecting plate | 3~12mm |
| Floor deck | 1.0mm |
| Fence | 1.2m high zinc steel guardrail |
| Structure steel fabrication+Sanding + Paint | Acetylene, oxygen, electrode, Sa2.5 |
7.Loading pictures reference
Door and window will packed safety to prevent damage. We will reponsible for all missing components and wrong parts. We will provide insurance services for shipment to avoid any mistakes.
8. Steel Structure Building materials and accessories
Factory show
Foshan TianPuAn Building Materials Technology Co.,Ltd.(TPA housing),was is founded in 2008. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop(Lishui town/Gaoming town)with total area covered 20,000square meter plant and equipped an automatic spraying line and automatic welding machine.
We focus on producing custom-made economic and environmentally friendly prefab house. With the specialized techonology, professional design team and high-quality construction team we undertaken hundreds of prefab buildings production and installation, got the consistent high praise of the clients.
