Place of Origin:
Foshan, Guangdong
Brand Name:
TPA Housing
Certification:
ISO,SGS,BV
Model Number:
TPA-SD028
Product Description
Steel structure factory buildings are a preferred choice for industrial applications due to their strength, durability, flexibility in design, and relatively fast construction timelines. These structures utilize steel beams, columns, and other steel components to create a robust framework that supports the roof, walls, and any internal equipment or machinery.
Structural Composition:
The core of a steel structure warehouse lies in its framework, which is typically crafted from steel beams and columns interconnected with bolts or welds. This skeletal system provides exceptional load-bearing capacity, allowing for expansive floor areas without compromising stability. The roofing and walls are often clad with steel sheets or other lightweight materials, further enhancing the structure's overall strength while maintaining a lightweight design.
Application
The steel structure building is widely used in the construction of buildings such as warehouses, workshops, and large factories.hangar/garage/chicken shed, exhibition hall, agricultural storage, logistic centers etc.
Steel Structure house building material components
| Main Steel Frame | H section steel | Q235,Q345 steel 8mm/10mm |
| Welding | Automatic submerged arc welding | |
| Rust removal | 2.5 Sand blasting | |
| Surface processing | Alkyd paint or hit dip galvanized | |
| Intensive bolt | Grade 10.9 | |
| Supporting System | Angle brace | L50x4,Steel Q235, processed and painted |
| Cross support | Φ20, Steel Q235, processed and painted | |
| Tie rod | Φ89*3, Steel Q235, processed and painted | |
| Small bracing | Φ12,Steel Q235, processed and painted | |
| Ordinary bolt | M12,M20 Galvanized bolt | |
| Roof | Purlin | C160*60*2.5,Steel Q235, galvanized and painted |
| Roof panel | Sandwich panel or corrugated steel sheet | |
| Transparent lighting panel | 6mm thick PVC(sky light) | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Trimming | Made from 0.5mm thick, colored sheet steel | |
| Gutter | PVC gutter or 2.0mm galvanized gutter | |
| Down pie | Φ110PVC | |
| Walls | Purlin | C160*60*2.5,Steel Q235, painted |
| Wall | sandwich panel or corrugated steel sheet | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Trimming | Made from 0.5mm thick, colored sheet steel | |
| ventilation fan | 600x600 or customized size | |
| Doors & windows | Rolling door/sliding door PVC/alu/steel window |
Production Characteristic
1. Strong construction,energy efficient,reduces construction time,cost saving,technology building,environmental friendly.
2.Time-saving---TPA prefabricates every part of each house within the controlled environment of our factory, which greatly reduces the construction time consumed on site.
3. Cost Reduction---Unlike tradtional house builders,our prefabs technology significantly reduces the on-site workload, saving labor and cost.
4. Anti-earthquake Structure---Our premium quality structural steel frames and building materials are selected to maximize safety and durability of each house.
5. Fresh Air Inside---We design our homes to maximize airflow and natural energy to keep spaces clean, bright and comfortable.
6. Water proof--we have a special treament for the waterproof

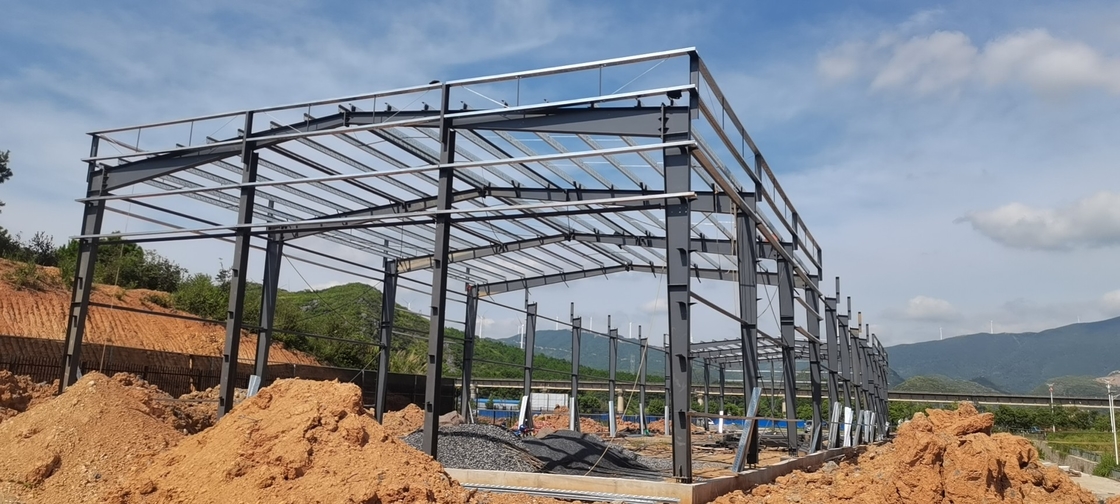

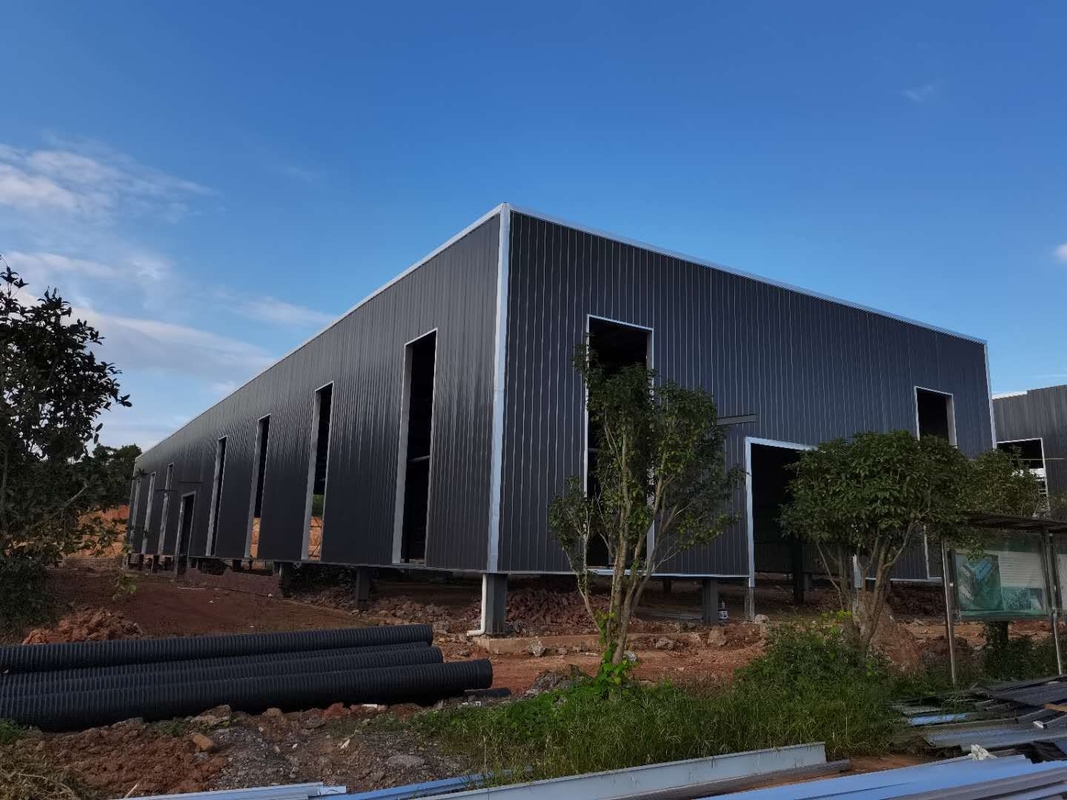

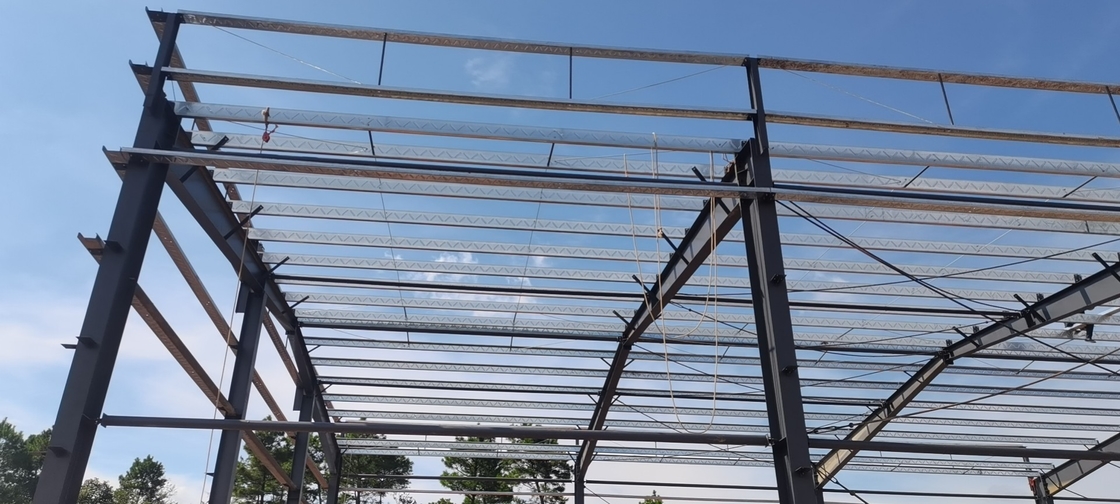

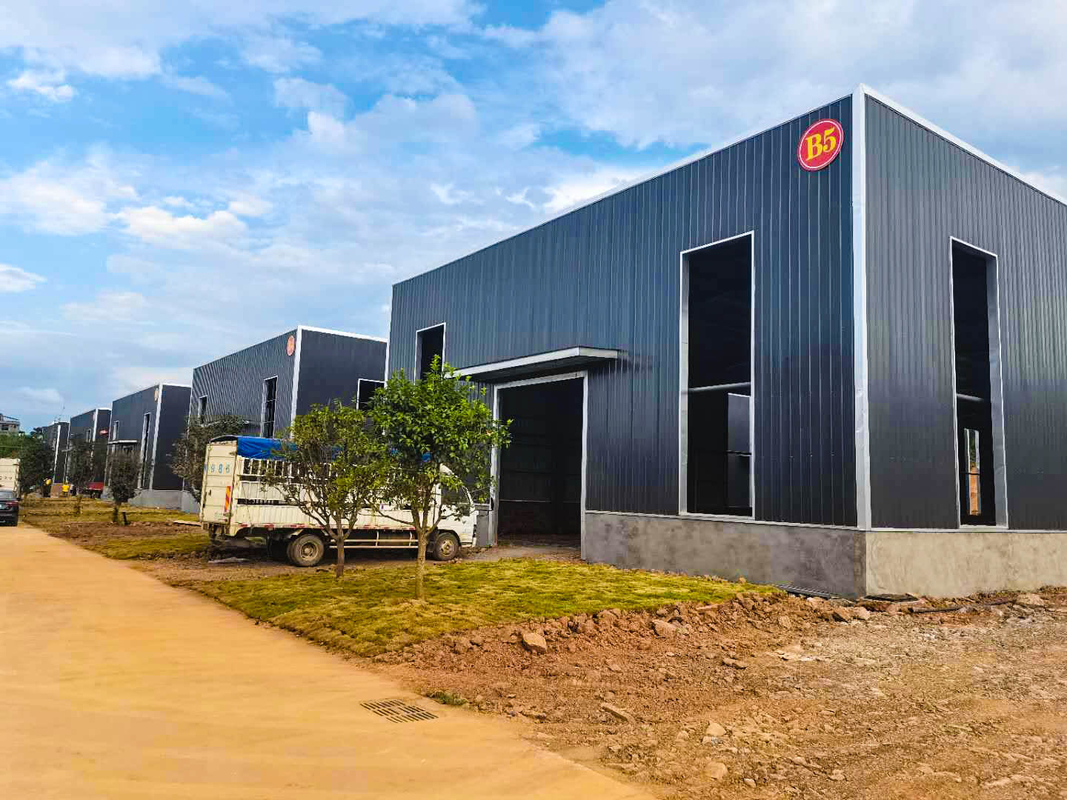

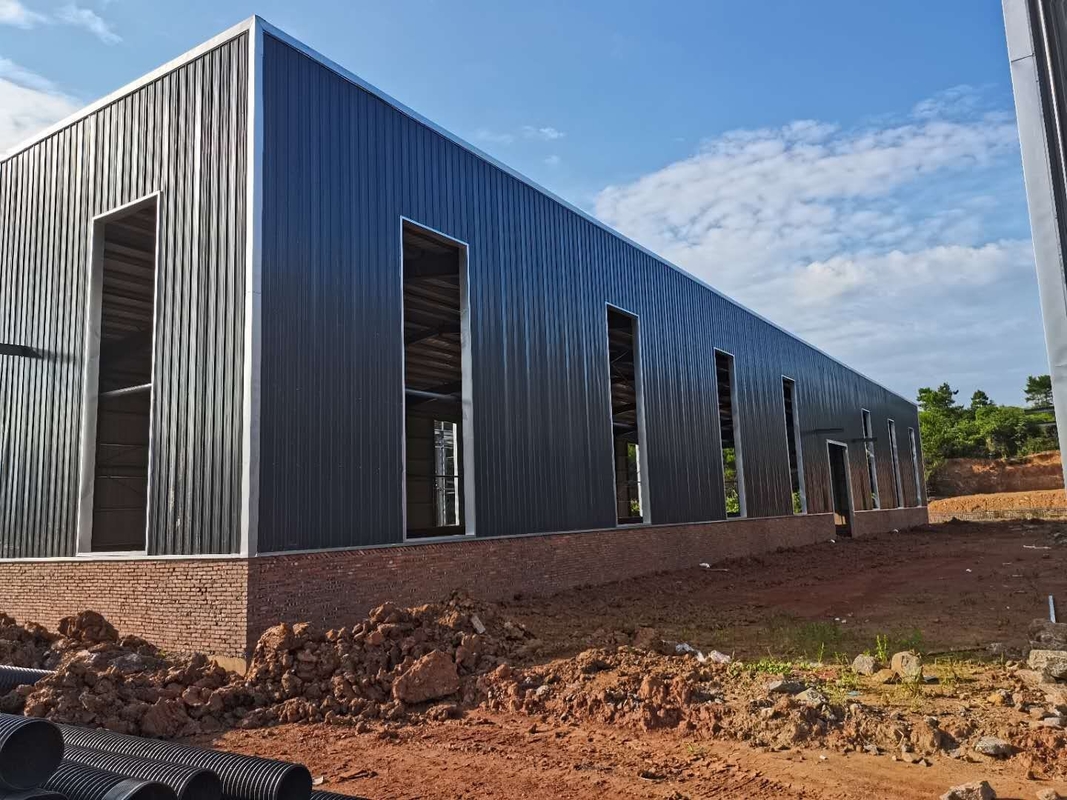

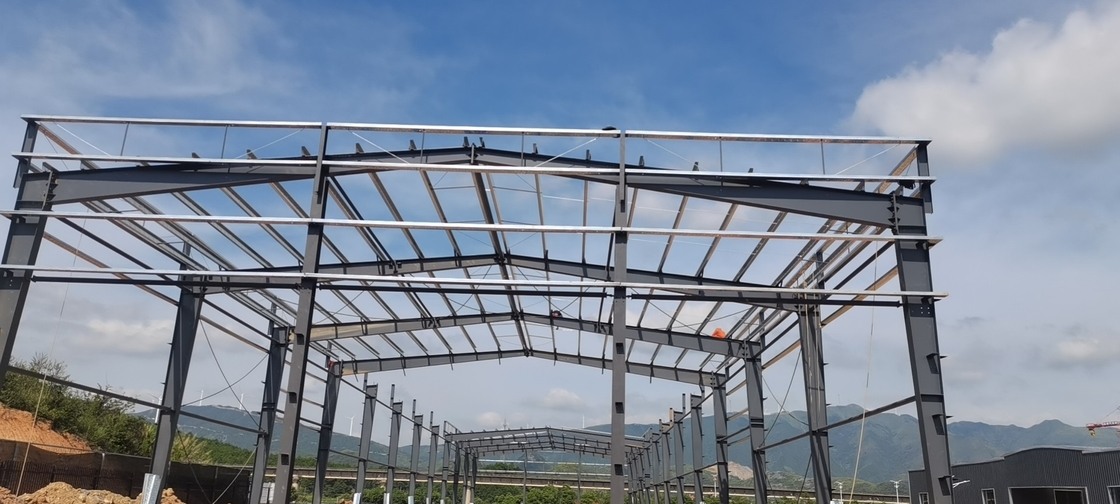

Steel fabrication project display
Inspection
To ensure all the goods are qualified, will inspect all the goods more than 3 times:
1. Check all the materials before start work.
2. Inspection before each process step.
3. Inspection during production.
4. Inspection after completed. Always install several sections to ensure no problems with installation
Pictures reference
Door and window will packed safety to prevent damage. We will reponsible for all missing components and wrong parts. We will provide insurance services for shipment to avoid any mistakes.
Factory show
Foshan TianPuAn Building Materials Technology Co.,Ltd.(TPA housing),was is founded in 2008. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop(Lishui town/Gaoming town)with total area covered 20,000square meter plant and equipped an automatic spraying line and automatic welding machine.
We focus on producing custom-made economic and environmentally friendly prefab house. With the specialized techonology, professional design team and high-quality construction team we undertaken hundreds of prefab buildings production and installation, got the consistent high praise of the clients.
